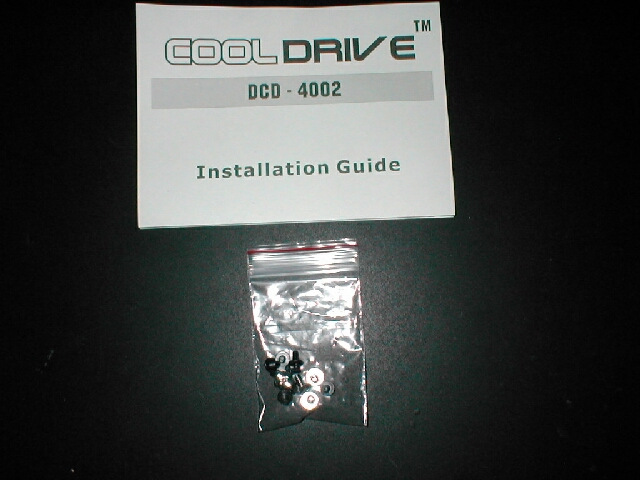

The Cool Drive 4002 comes with instructions for installation and 12 screws, 8 are black and 4 are crome.

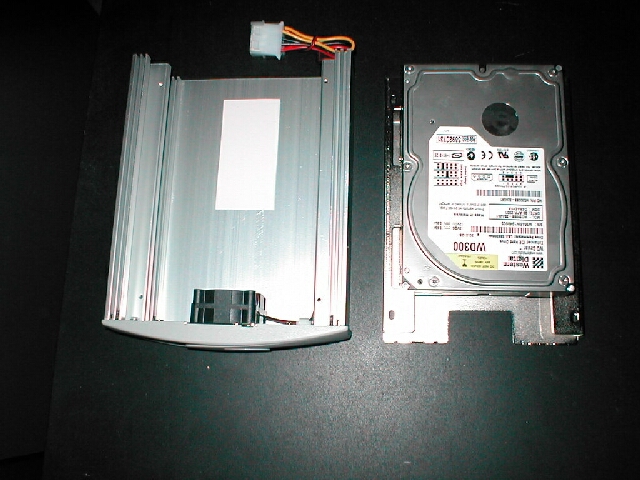

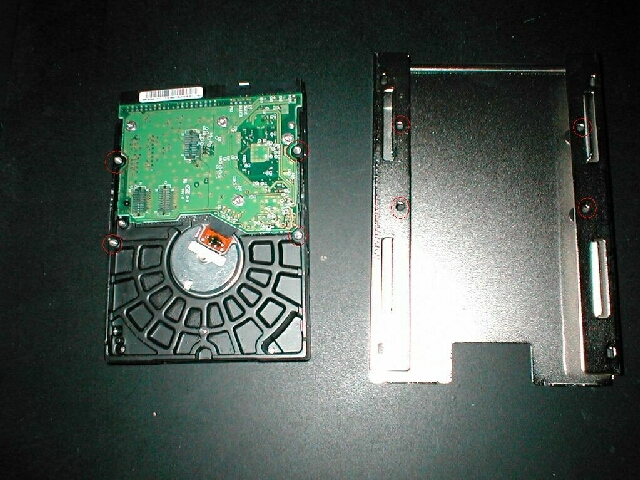

First you will need the bottom part of the Cool Drive 4002, you will mount your hard drive to this. The Cool Drive 4002 supports both IDE and SCSI hard drives. I will be using a 30GB 7200RPM Western Digital IDE hard drive. You will see that the bottom of the hard drive and the mounting plate have 4 holes.

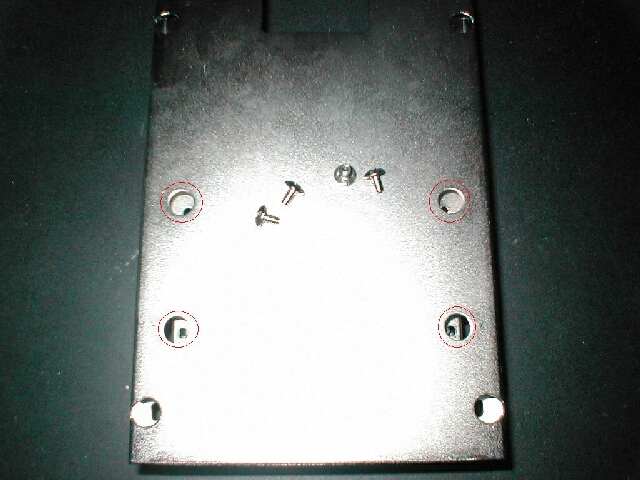

Align the 4 holes on the mounting plate with the 4 holes on your hard drive and use the 4 come screws to attach the mounting plate to your hard drive. Make sure that the end of your hard drive with the connections is on the side opposite of the cutout.
Your hard drive should now be securely in place and ready to install to the top half.

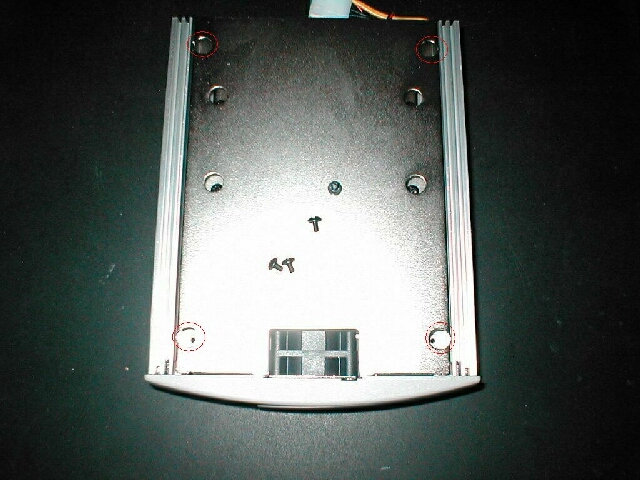

Take the mounting plate with your hard drive attached to it and place it into the top half of the Cool Drive 4002. It should fit in place with no struggle. Use 4 of the black screws and screw them into the 4 holes to attach the mount plate to the top.

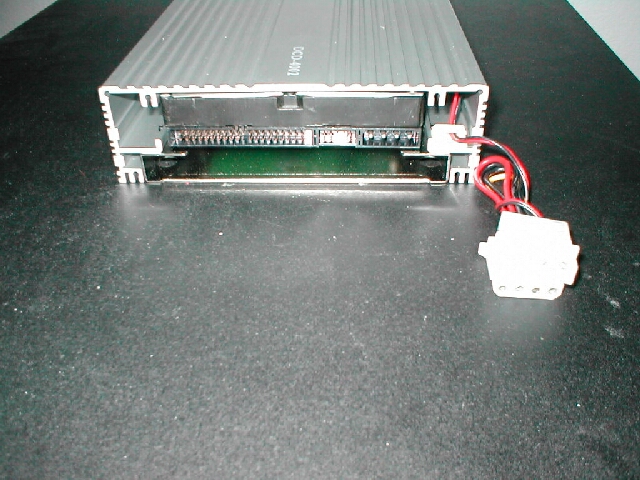

You should now be done mounting your hard drive into your Cool Drive 4002; the back of the unit should be exposing the connectors.

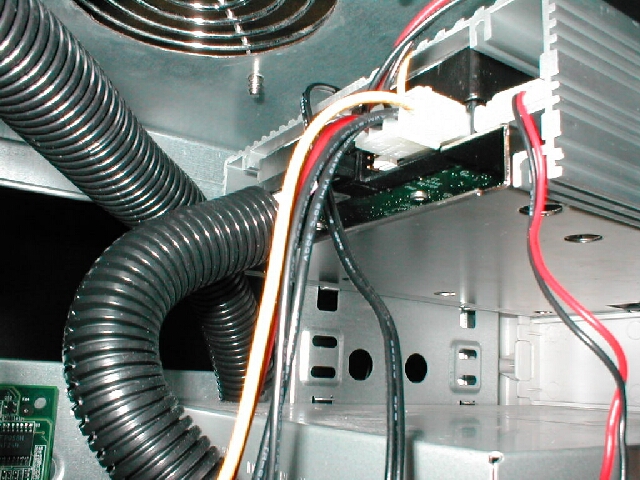

Take the Cool Drive 4002 with your hard drive installed and choose the 5.25 bay that you want to install it into. Slide it all the way in until it is where you want it. Use the 4 remaining black screws to secure the Cool Drive 4002 into the drive bay. Connect your IDE/SCSI cable back to your hard drive, along with the Molex for the power. You will also need to plug the Molex connector for the fan in the Cool Drive 4002 to one from your power supply.

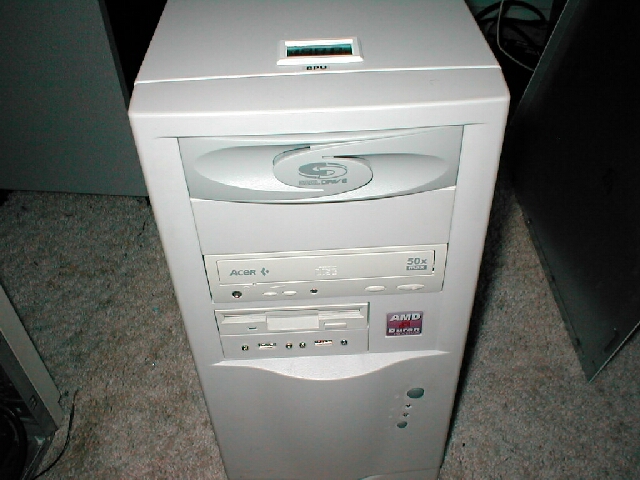

That’s about it as far as installation goes, here’s the Cool Drive 4002 installed, it looks really cool. Now lets see how it performs…
