Albatron K8X800 Pro II Motherboard Review

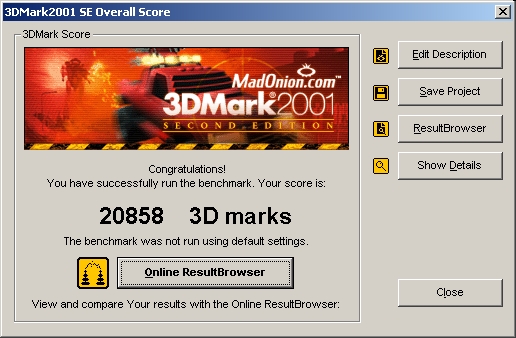

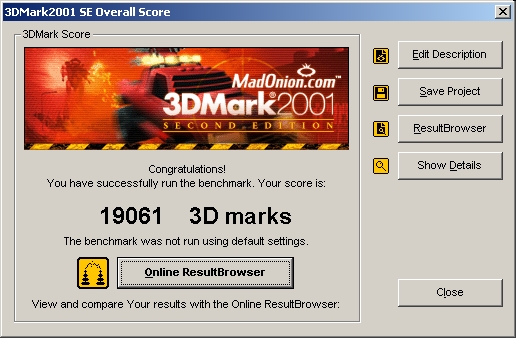

3DMark2001SE is more of a video card benchmark however it can also be used to test CPUs. I set the resolution to 640×480 and left all of the other options at their default. The trend continues with this benchmark as well with the overclocked system getting a lower score than that of the stock one. The results are not that significant but worth mentioning.

Click here for a larger image
Click here for a larger image
Stock
Overclocked

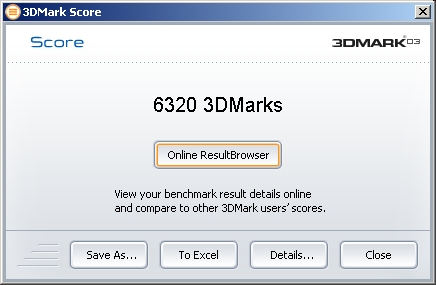

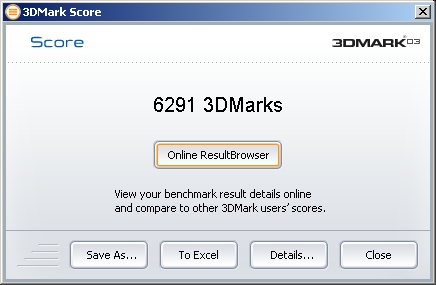

3DMark03 is the newest version of this benchmarking software from Futuremark. Again I set the resolution to 640×480 and left all of the other settings alone. The overclocked system gets only 29 less points than the stock system which isn’t much and could be contributed to inconsistencies with benchmarking. However in this case after seeing the other benchmarks churn out similar results this is probably not the case.

Click here for a larger image
Click here for a larger image
Stock
Overclocked

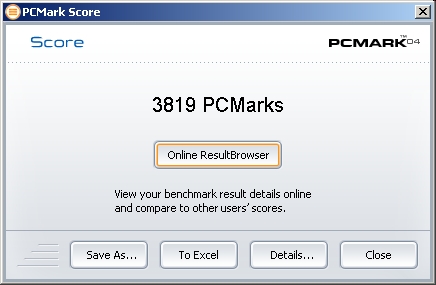

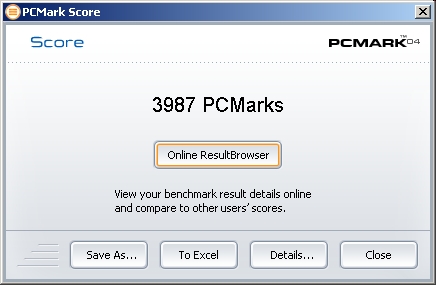

PCMark04 is an overall system benchmarking program also from Futuremark. With this benchmark I selected the system and memory. This is the only benchmark where the overclocked system gets a higher score than the stock system. It would have been nice to see these kind of results from the other benchmarks however this is not the case.

Click here for a larger image
Click here for a larger image
Stock
Overclocked
