AOpen AX4PE Max Motherboard Review

CPU: Intel Pentium 4 Processor (Socket 478)
Chipset: Intel 845PE (533Mhz FSB capable)
Architecture: 6PCI slots + 1 AGP slot (4x) + 1 CNR
Max. Main Memory: Max 2GBDDR SDRAM for 184pin DIMMx3
DIMM Type: 64/128/256/512/1GB
On Board LAN: Realtek 10/100Mbps Ethernet controller
On Board Sound: Realtek AC’97 CODEC 5.1 channel
IEEE 1394: Texas Instruments TSB43AB22 Control Chip
Battery: 3V Lithium Battery
Green Function: Yes
BIOS: Award PnP 4MB Flash ROM BIOS (2nd Flash ROM for DieHard BIOS)
Board Size: 305mm x 244mm, ATX form factor

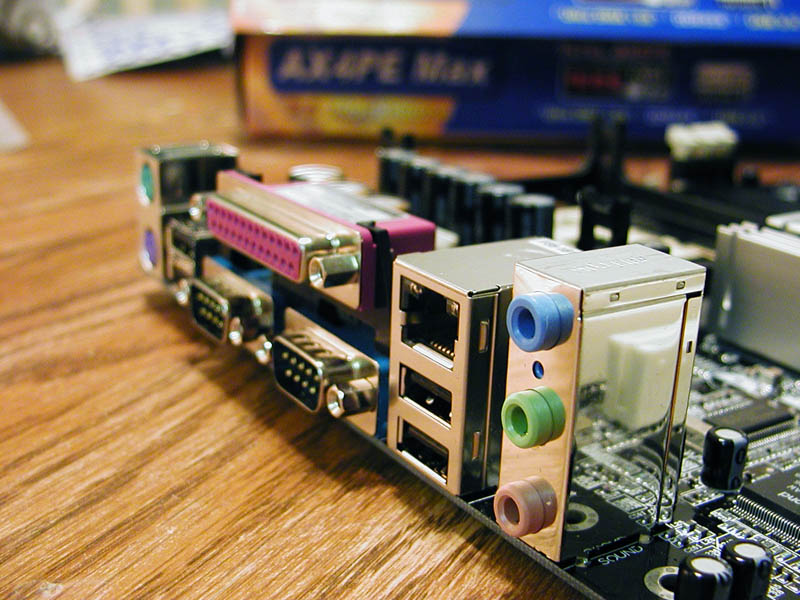

Storage and Back Panel I/O:

    • 2 UART 16C550 Serial Ports



  • 1 Parallel Port (SPP/EPP/ECP)
  • 2 ATA100 ports (Mode 4 and Bus Master Ultra DMA 33/66/100 support)
  • 1 ATA133 port (Mode 5 and Bus Master Ultra DMA 33/66/100/133 support)
  • 2 Serial ATA 150 ports
  • 1 Floppy Drive connector (1.2/1.44/2.88MB)
  • 4 USB ports
  • 1 10/100Mpbs Ethernet Port
  • 1 PS/2 Mouse Port
  • 1 PS/2 Keyboard Port
  • 3 Audio connectors (software programmable)

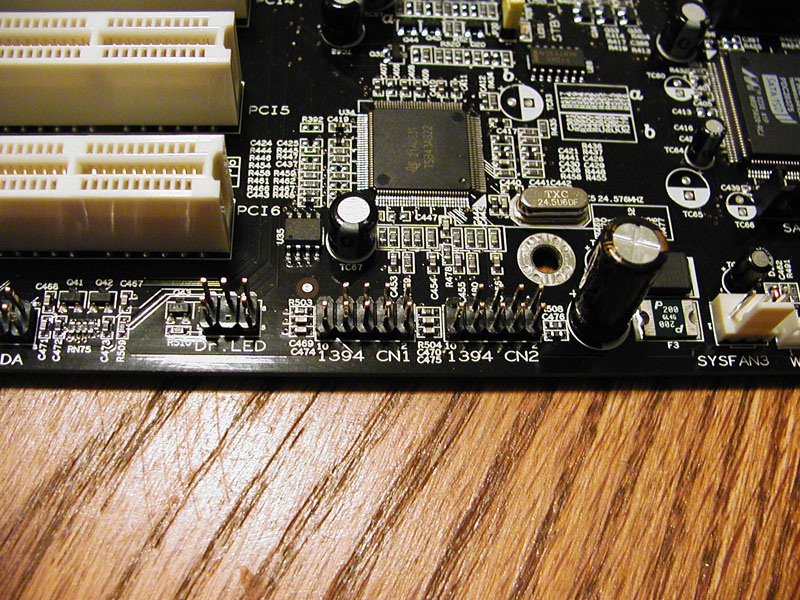

Onboard Connectors:

    • 1 Front Panel



  • 1 Front Audio
  • 1 CPU Fan
  • 1 System Fan
  • 1 Chassis Fan
  • 1 Case Open Connector
  • 1 AUX_IN
  • 1 CD_IN
  • 1 Wake-on-LAN
  • 1 IrDA
  • 1 S/PDIF
  • 1 Dr. LED
  • 1 Game Connector
  • 2 IEEE 1394 (Firewire)
  • 1 USB 2.0
Included software:

    • Acrobat Reader

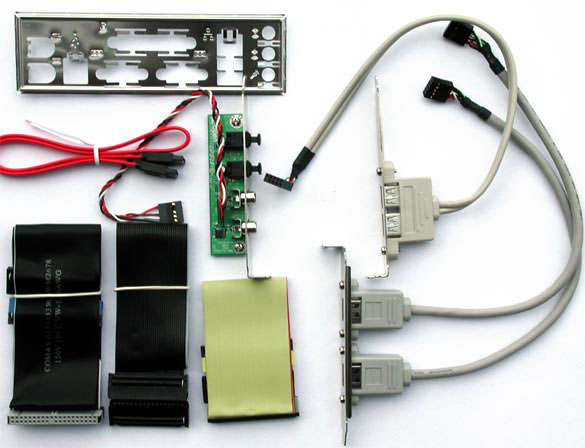

Accessories:



  • Enhanced Full Pictured Manual
  • EzRestore Guide
  • Bonus Pack CD
  • Norton Anti-Virus CD
  • Black floppy cable
  • Black 80-wire ATA66/100 cable
  • Black 80-wire ATA133 cable
  • Red Serial ATA cable
  • 2 IEEE 1394 ports
  • 2 USB 2.0 ports
  • Back Panel I/O shield
  • CPU Retention Module
