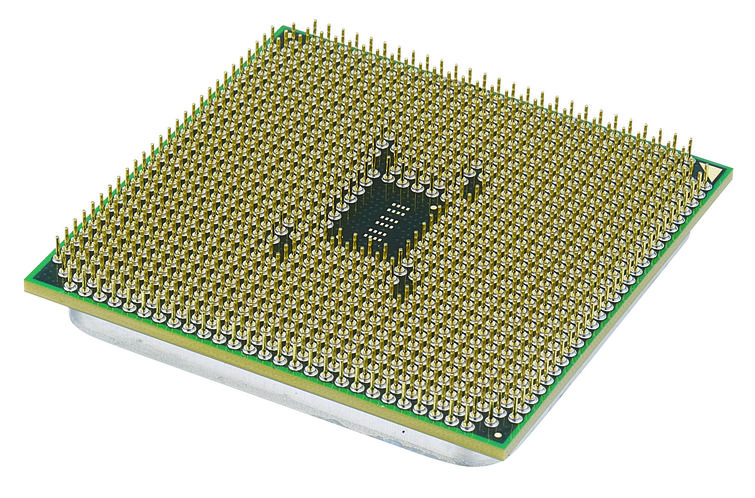

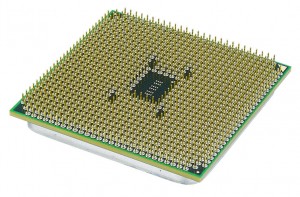

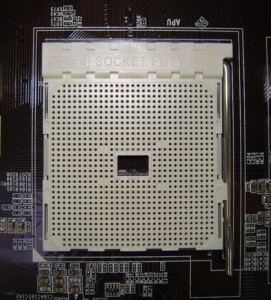

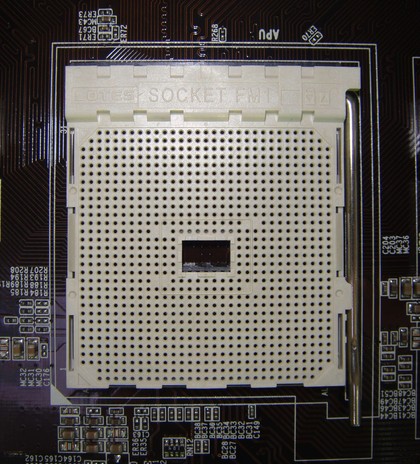

The Socket FM1 was released in mid-2011 for the A-series Fusion (Llano) processors and Llano-derived Athlon II processors. It was designed to be used with the AMD Fusion Family 12h microarchitecture, called Llano popularly. It is an evolution of the K10 design featuring a 1MB L2 cache per core, and no L3 cache. It has an improved hardware prefetcher, a redesigned memory controller, power-saving improvements including clock gating, and Onion and Garlic interfaces for interfacing with an on-die GPU. It is also used to make a great Italian meatball and pasta dish, from the sound of it. Here is some of the perks of owning one of these CPUs:
- All models feature upgraded Stars (Mobile Phenom II architecture) CPU cores (Husky) with no L3 cache, and with Evergreen family graphics, specifically Redwood-class integrated graphics on die (WinterPark for the dual-core variants and BeaverCreek for the quad-core variants).
- All models are manufactured on GlobalFoundries’ 32nm SOI process.
- All Lynx desktop models support up to 4 DIMMs of DDR3-1866 memory and Sabine mobile models support up to 2 DIMMs of DDR3-1333 / DDR3-1600 dual-channel memory.
- All models feature UVD3 for hardware video decoding, including 120Hz stereoscopic 3D support.
- All models have an integrated PCIe 2.0 controller.
- Select models support AMD’s Turbo Core technology for faster CPU operation when the thermal specification permits.
- Select models support Hybrid Graphics technology to assist a discrete Radeon HD 6450, 6570, or 6670 discrete graphics card. This is similar to the Hybrid CrossFireX technology.
And here is a list of supported processors:
| Model Number | Cores | Frequency | Turbo | L2 Cache | Multiplier | Voltage | Memory Support | TDP |
|---|---|---|---|---|---|---|---|---|
| E2-3200 | 2 | 2.4Ghz | N/A | 2 x 512kb | 24x | 0.4125 – 1.4125 | DDR3-1600 | 65W |
| A4-3300 | ^ | 2.5Ghz | N/A | ^ | 25x | ^ | ^ | ^ |
| A4-3400 | ^ | 2.7Ghz | N/A | ^ | 27x | ^ | ^ | ^ |
| A4-3420 | ^ | 2.8Ghz | N/A | ^ | 28x | ^ | ^ | ^ |
| A6-3500 | 3 | 2.1Ghz | 2.4Ghz | 3 x 1 MB | 21x | ^ | DDR3-1866 | ^ |
| A6-3600 | 4 | 2.1Ghz | 2.4Ghz | 4 x 1 MB | 21x | ^ | ^ | ^ |
| A6-3620 | ^ | 2.2Ghz | 2.5Ghz | ^ | 22x | ^ | ^ | ^ |
| A6-3650 | ^ | 2.6Ghz | N/A | ^ | 26x | ^ | ^ | 100W |
| A6-3670K | ^ | 2.7Ghz | N/A | ^ | 27x | ^ | ^ | ^ |
| A8-3800 | ^ | 2.4Ghz | 2.7Ghz | ^ | 24x | ^ | ^ | 65W |
| A8-3820 | ^ | 2.5Ghz | 2.8Ghz | ^ | 25x | ^ | ^ | ^ |
| A8-3850 | ^ | 2.9Ghz | N/A | ^ | 29x | ^ | ^ | 100W |
| A8-3870K | ^ | 3.0Ghz | N/A | ^ | 30x | ^ | ^ | ^ |
^ means “same as above”.
On the next page we take a look at AMD’s Socket AM3+…
